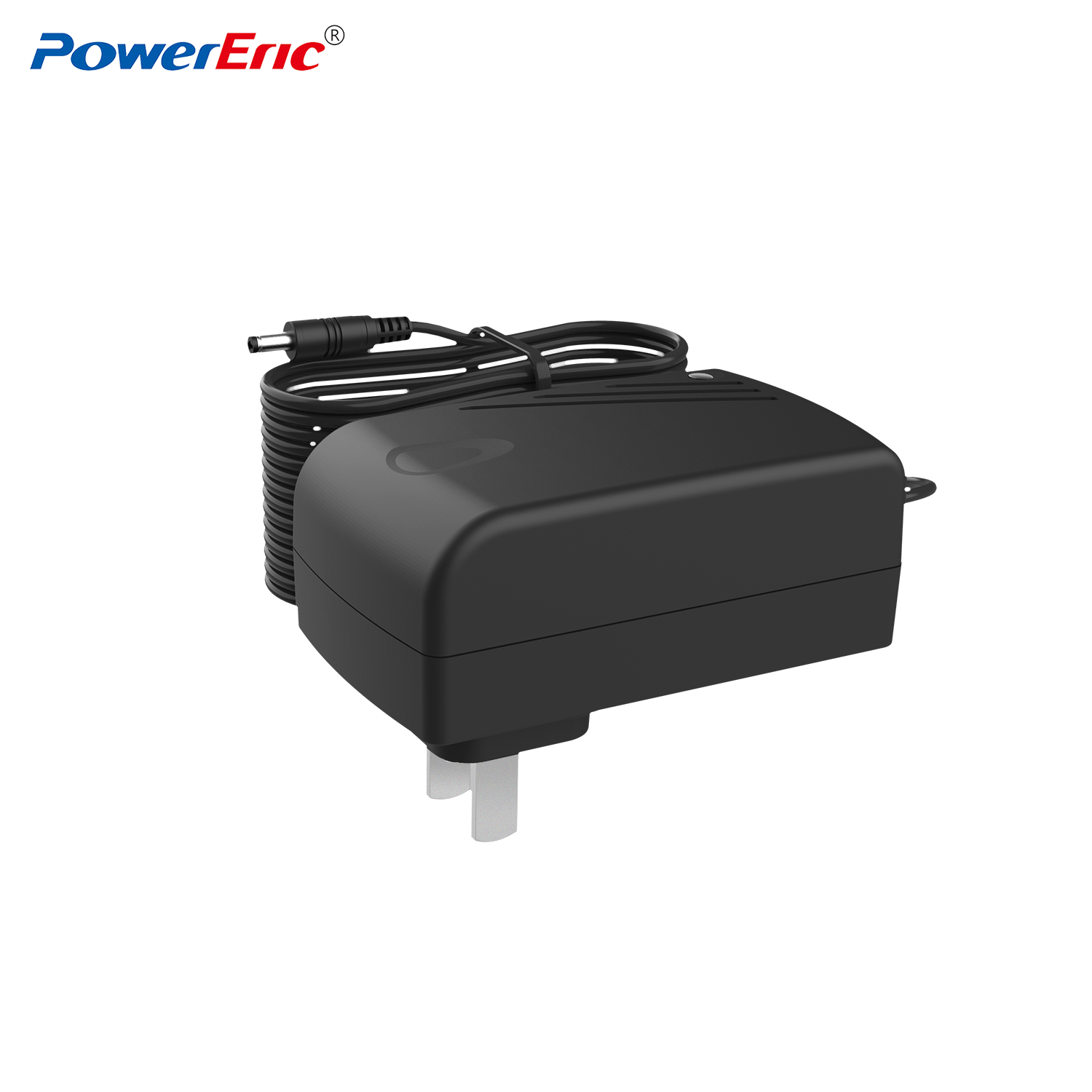

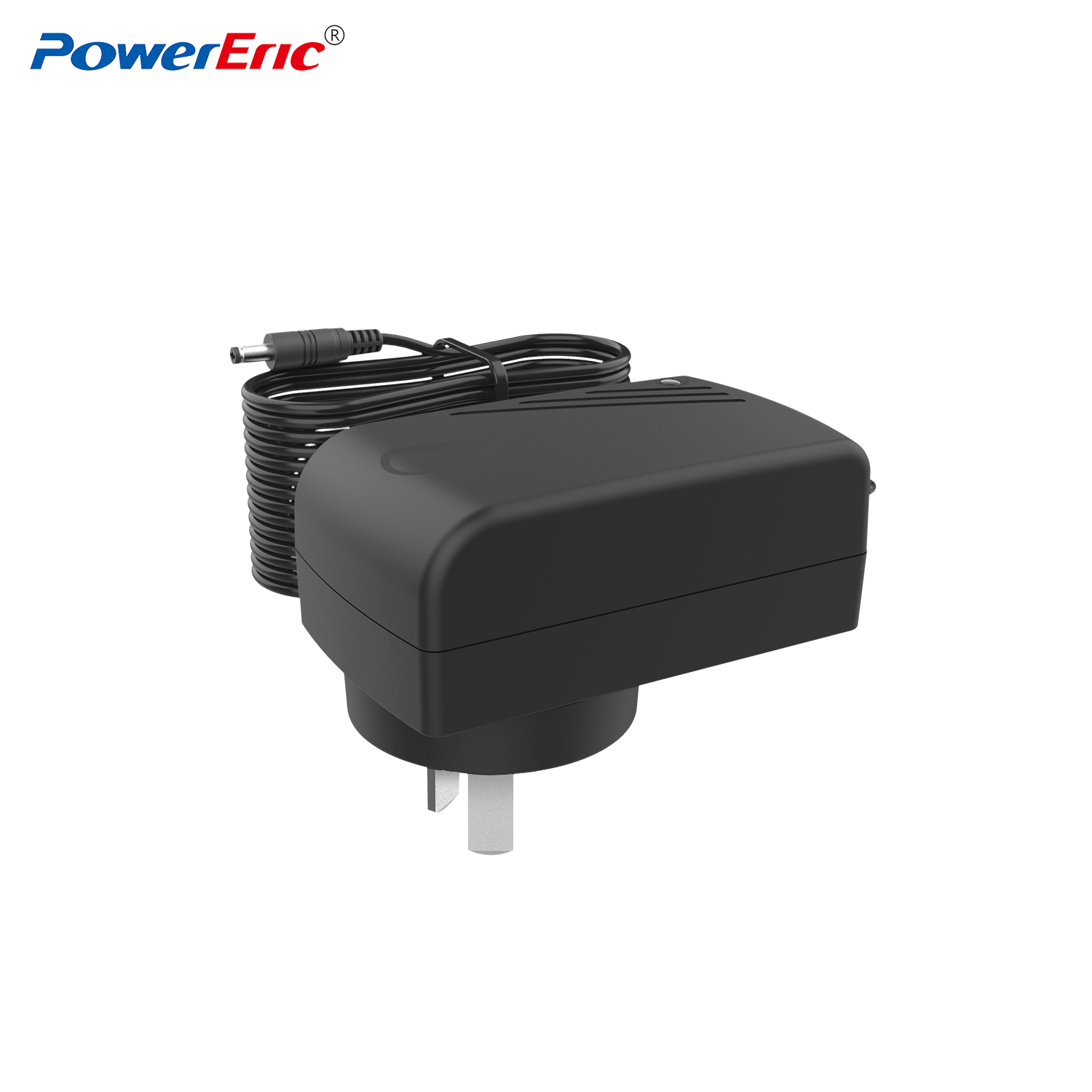

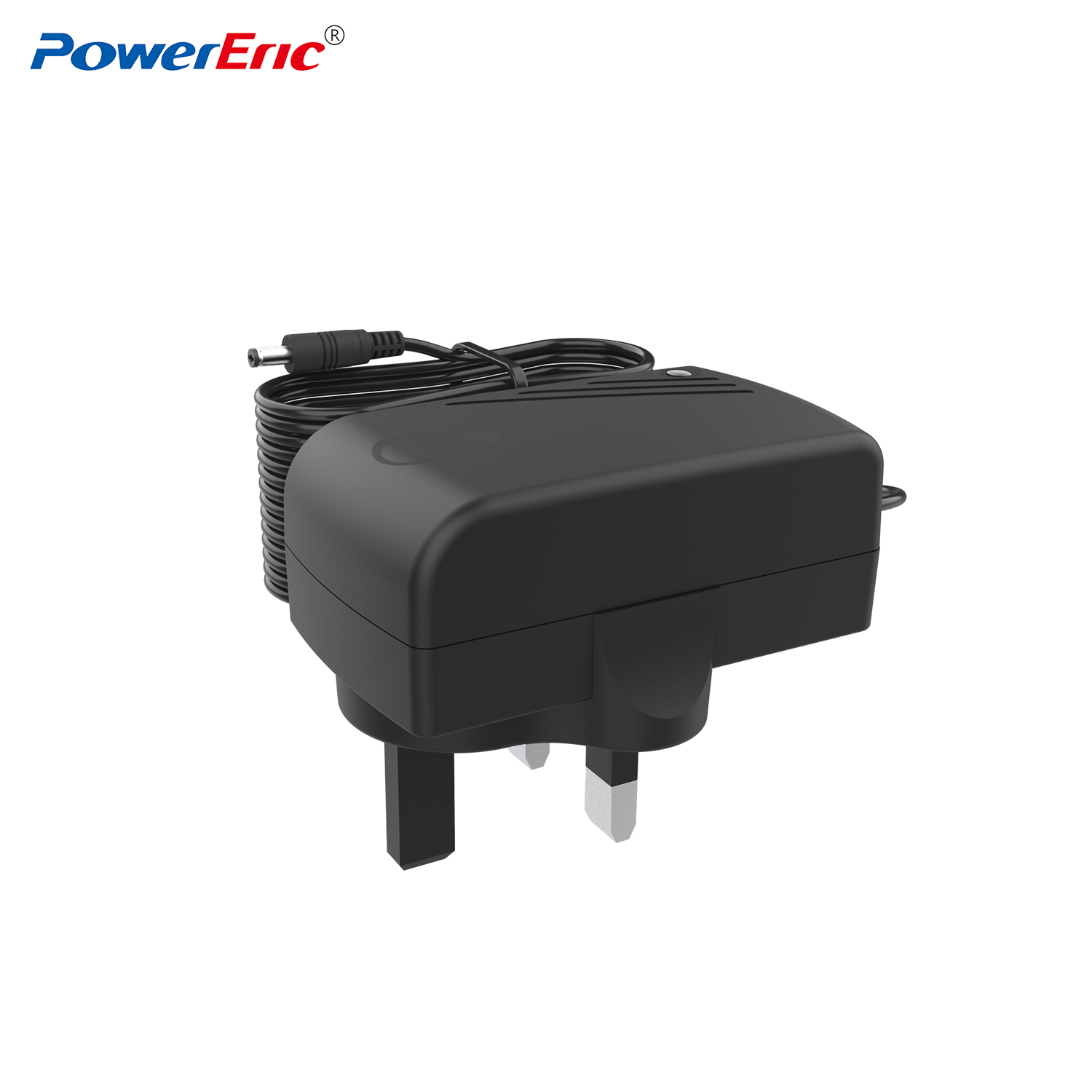

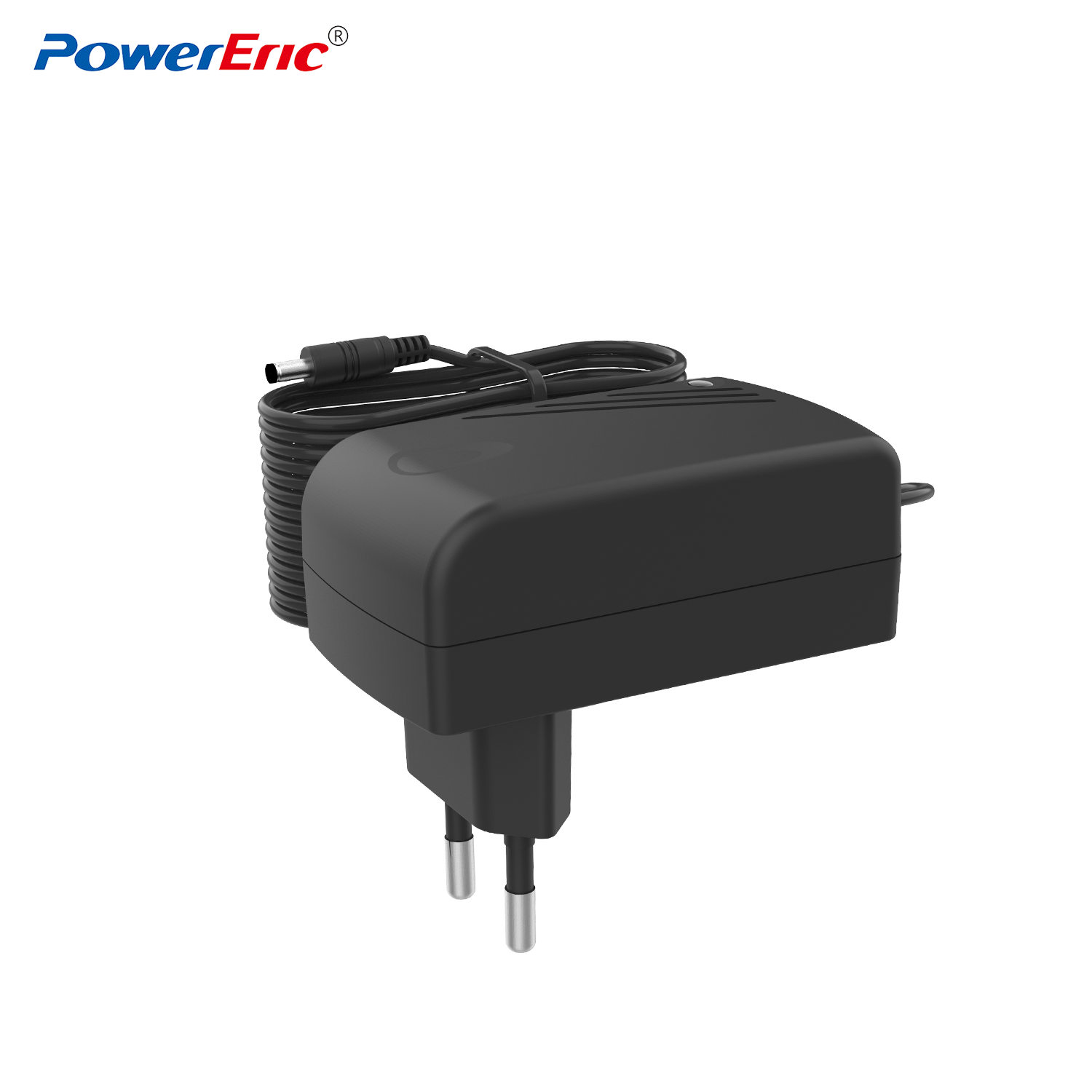

CH0061 6W Battery Charger with UL FCC CE KC PSE SAA RCM ERP DOE Certificates

SPECIFICATIONS

Model: CH0061-xxxyyyyzf

Input Voltage                             90〜264VAC

Input Frequency                          47〜63Hz

Output Voltage Range                  3.7V-16.8V
Output Current Range                  0.1A-1.42A

Output Power                              7W Max

LED DISPLAY

Green on standby.

Red on charging.

Red turn green on full charging.

PROTECTION:

Over Current protection

Short circuit protection

Flow backward protection

Output reverse input protection

Reverse connect protection

ENVIRONMENT

Operation temperature                    0℃ to +40℃

Operation relative humidity              20% to 85%

Storage temperature                       -40℃ to +70℃

Storage  humidity                           10% to 95%

SAFETY STANDARD

Battery Charger IEC/EN60335 UL/ETL1310

SAFETY CERTIFICATES

CB CE GS BS ETL/UL PSE KC KCC RCM SAA

APPLICATION

Li-ion/Li-polymer battery pack, Lead acid battery pack, Lifepo4 battery pack,Ni-Cd/Ni-Mh battery pack,UAV,LED flash light, Heated gloves,Power tool,Medical cars system, RC car, RC toys,E-Bike,RC plane,Diving light,POS machine terminal,Forklift,Golf cart, Self-balanced car,Monocycle etc
