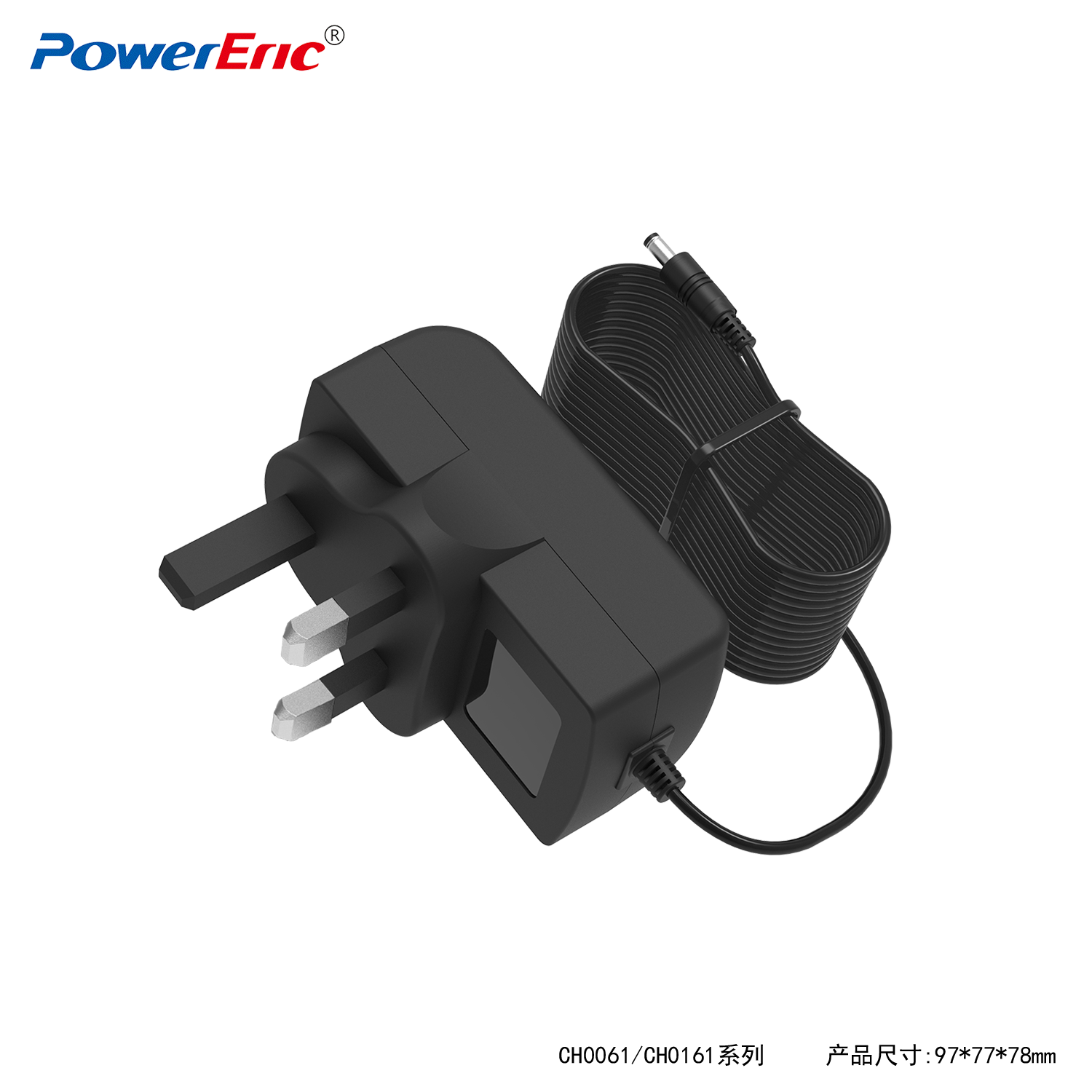

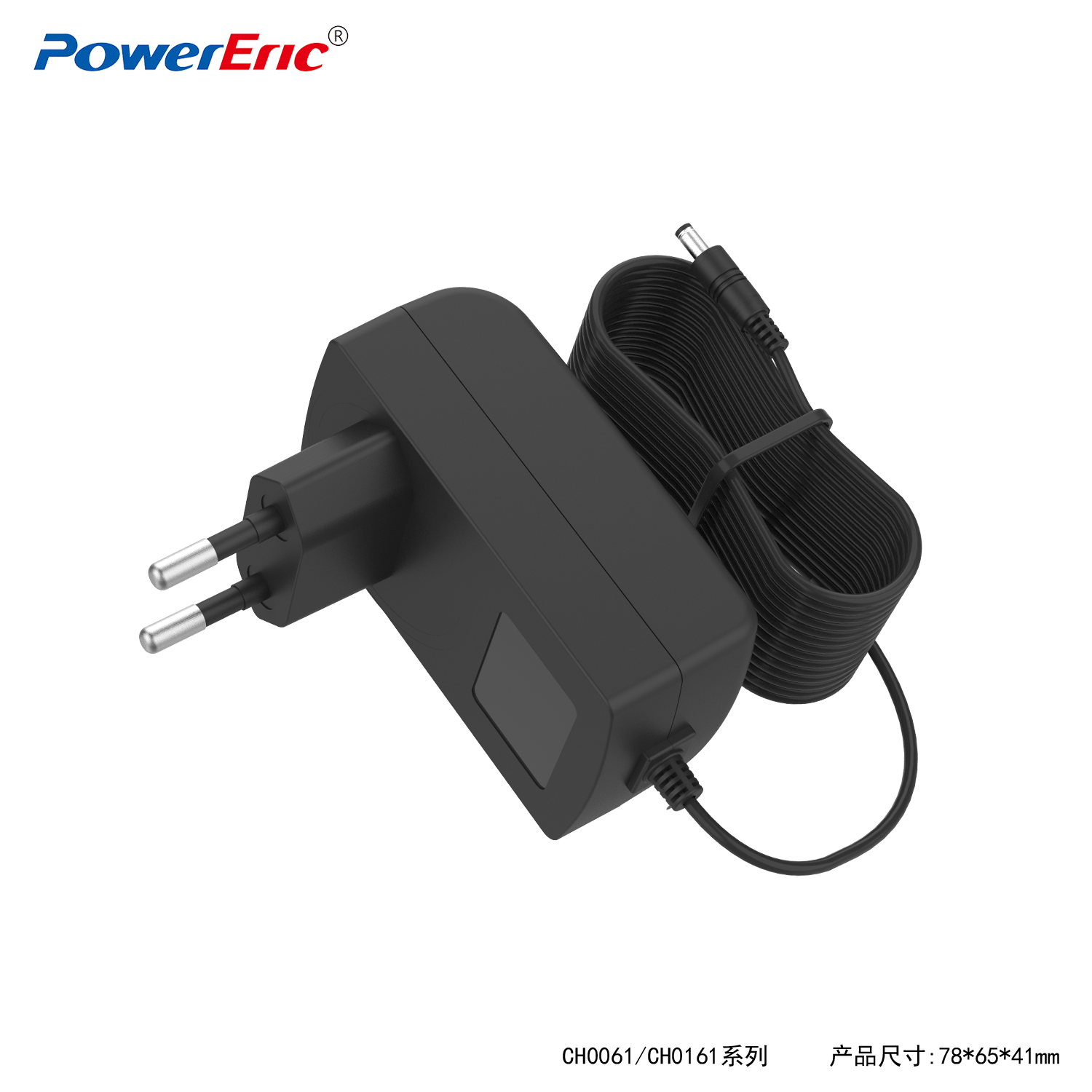

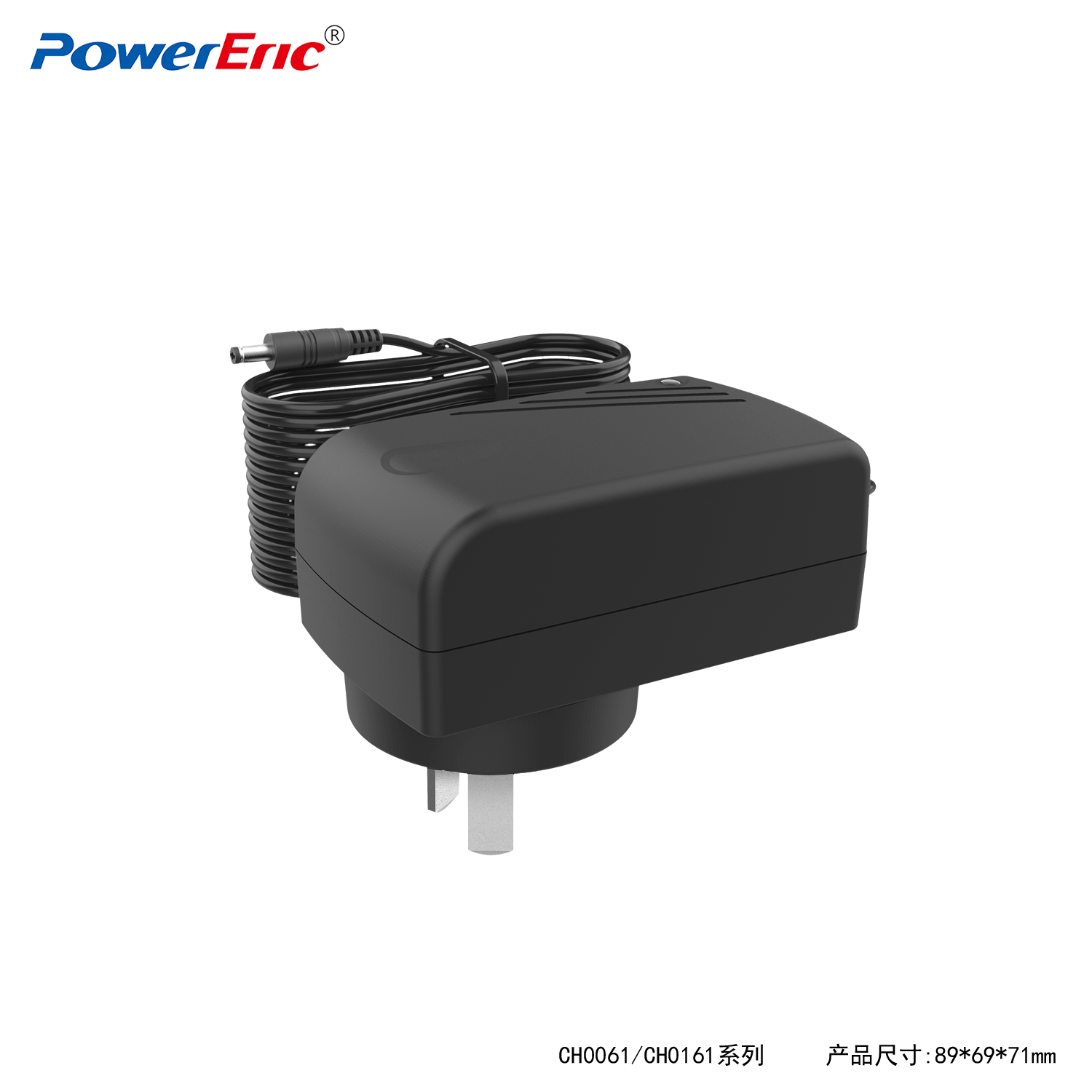

4.2V 8.4V Dual connector li-ion charger for Heating clothes

SPECIFICATIONS

Model: CH161-XXXYYYYZ(A/B/U/G)

Input Voltage                            90〜264VAC

Input Frequency                         47〜63Hz

Output Voltage Range                 4.2V/8.4v
Output Current Range                 1a*2

Output Power                             16.8W Max

Housing Size:                             78*65*41mm

Net Weight:                                80g

LED DISPLAY

Green on standby.

Red on charging.

Red turn green on full charge .

PROTECTION:

Over Current protection

Short circuit protection

Flow backward protection

Output reverse input protection

ENVIRONMENT

Operation temperature                0℃ to +40℃

Operation relative humidity         20% to 85%

Storage temperature                  -40℃ to +70℃

Storage  humidity                         10% to 95%

SAFETY CERTIFICATES

CB CE GS ETL/UL FCC PSE SAA RCM C-Tick ROHS

APPLICATION

Li-ion/Li-polymer battery pack, Lead acid battery pack, Lifepo4 battery pack,Ni-Cd/Ni-Mh battery pack,UAV,LED flash light, Heated gloves,Power tool,Medical cars system, RC car, RC toys,E-Bike,RC plane,Diving light,POS machine terminal,Forklift,Golf cart, Self-balanced car,Monocycle etc
