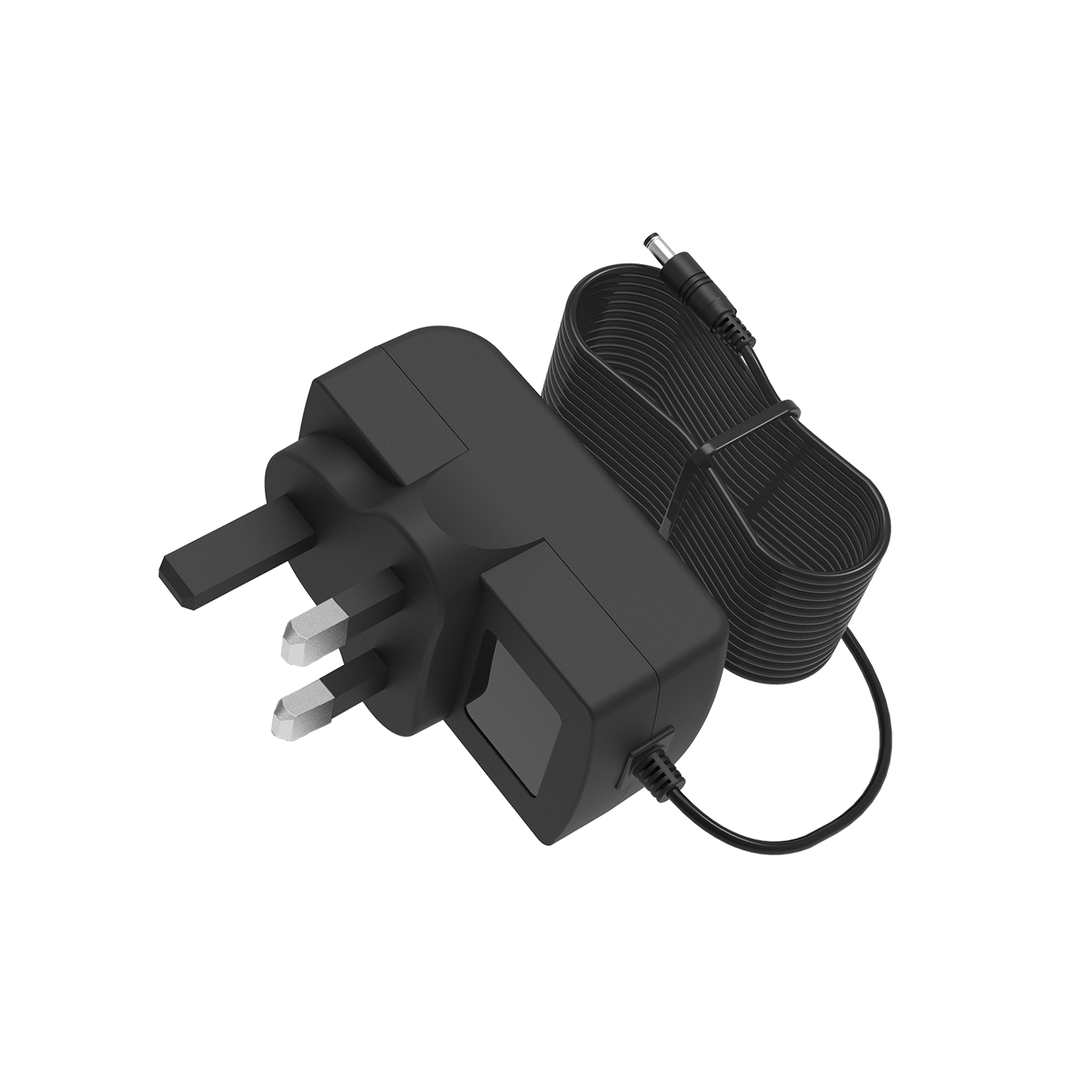

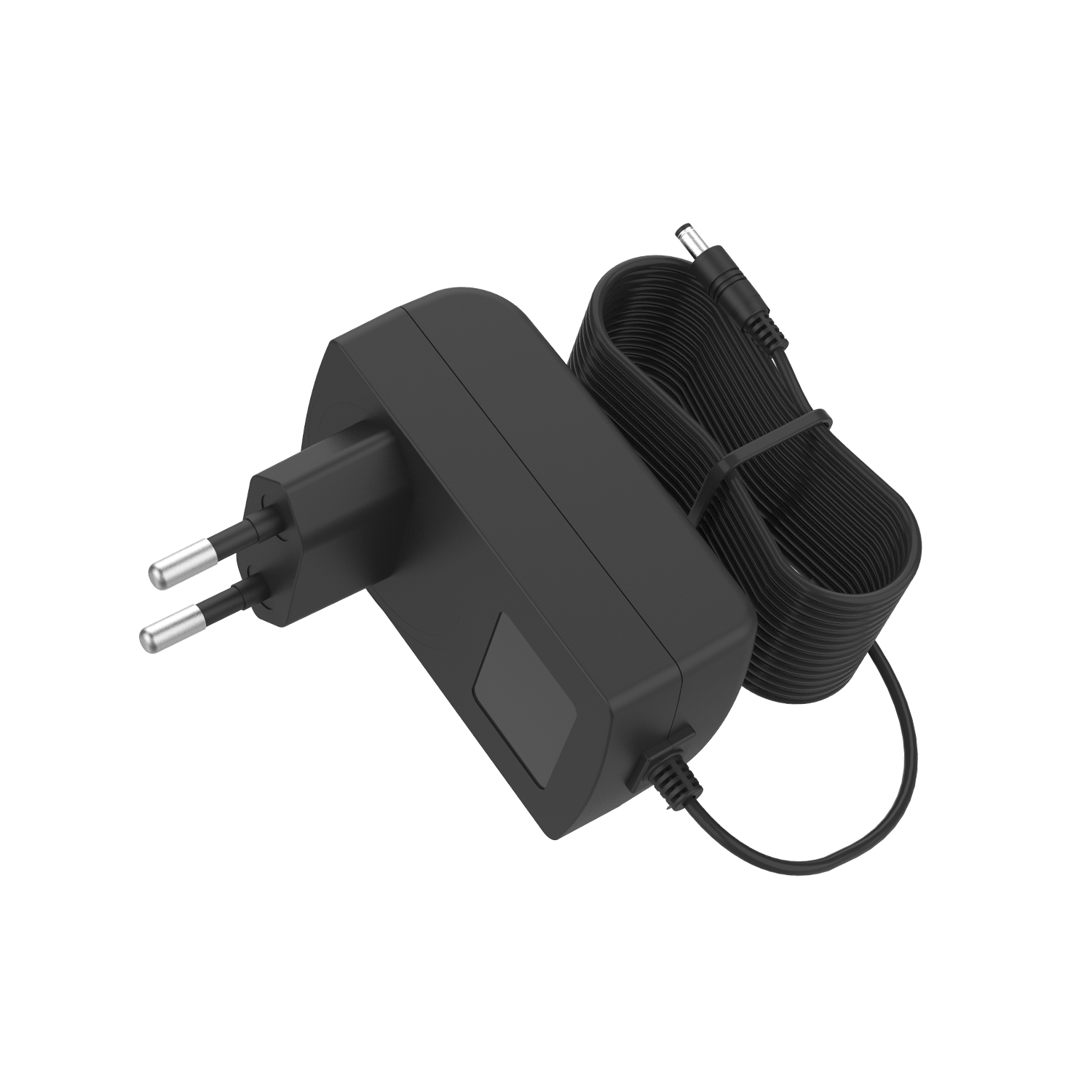

7.2V 14.4V lead acid battery charger

SPECIFICATIONS

Model: CH0161-XXXYYYZ(A/U/B/E/J)

Input Voltage                               90〜264VAC

Input Frequency                            47〜63Hz

Output Voltage Range                    7.2v/14.4v
Output Current Range                    0.1a-2.5a

Output Power                               16.8W Max

Housing Size:                                82*53*61mm

Net Weight:                                  90g

LED DISPLAY

Green on standby.

Red on charging.

Red turn green on full charge when charging current drop to 100+-30mA.

PROTECTION:

Over Current protection

Short circuit protection

Flow backward protection

Output reverse input protection

ENVIRONMENT

Operation temperature                     0℃ to +40℃

Operation relative humidity               20% to 85%

Storage temperature                        -40℃ to +70℃

Storage  humidity                            10% to 95%

SAFETY CERTIFICATES

CB CE GS ETL/UL FCC PSE SAA

APPLICATION

Li-ion/Li-polymer battery pack, Lead acid battery pack, Lifepo4 battery pack,Ni-Cd/Ni-Mh battery pack,UAV,LED flash light, Heated gloves,Power tool,Medical cars system, RC car, RC toys,E-Bike,RC plane,Diving light,POS machine terminal,Forklift,Golf cart, Self-balanced car,Monocycle etc
